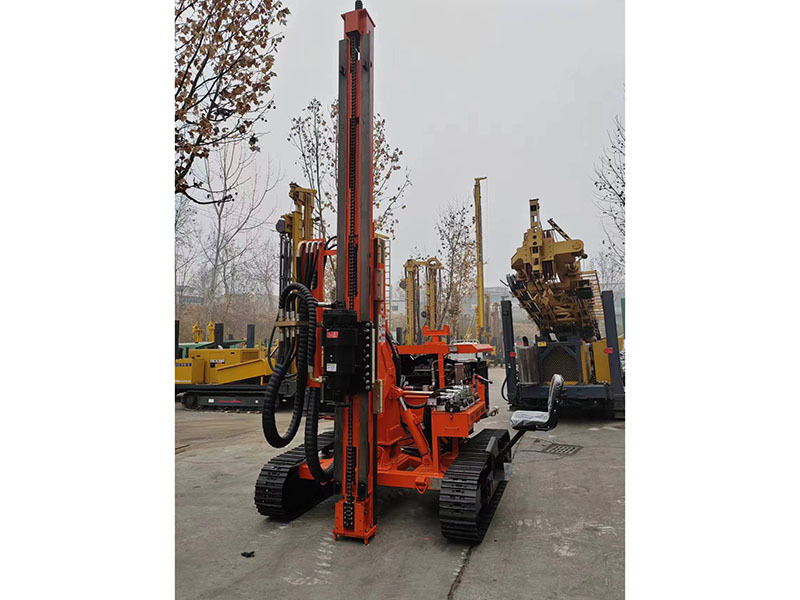

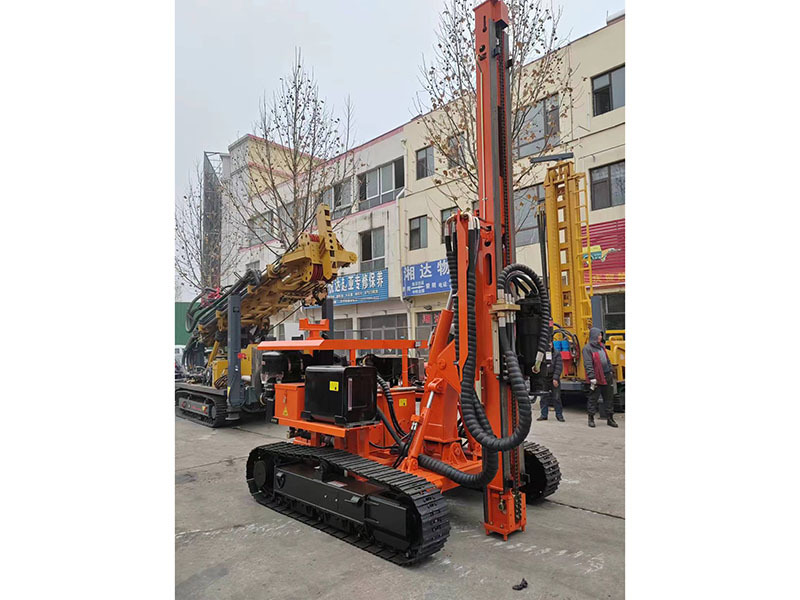

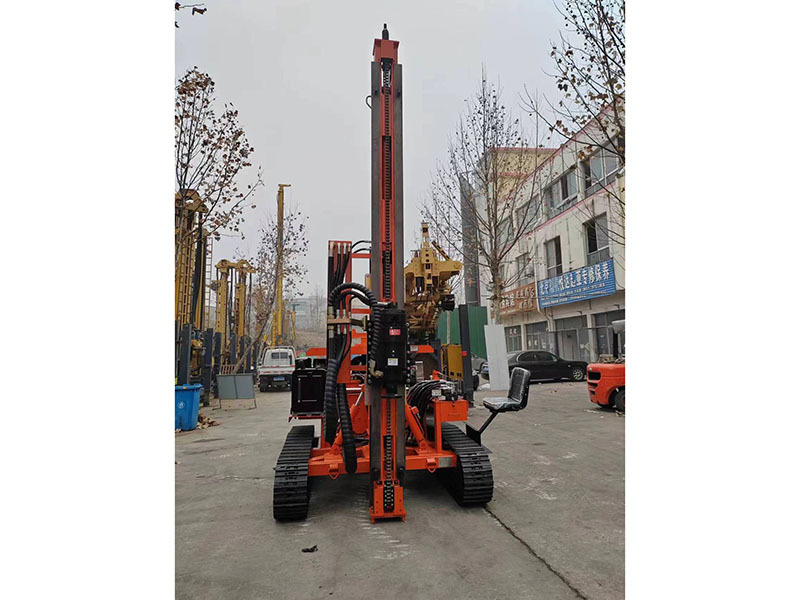

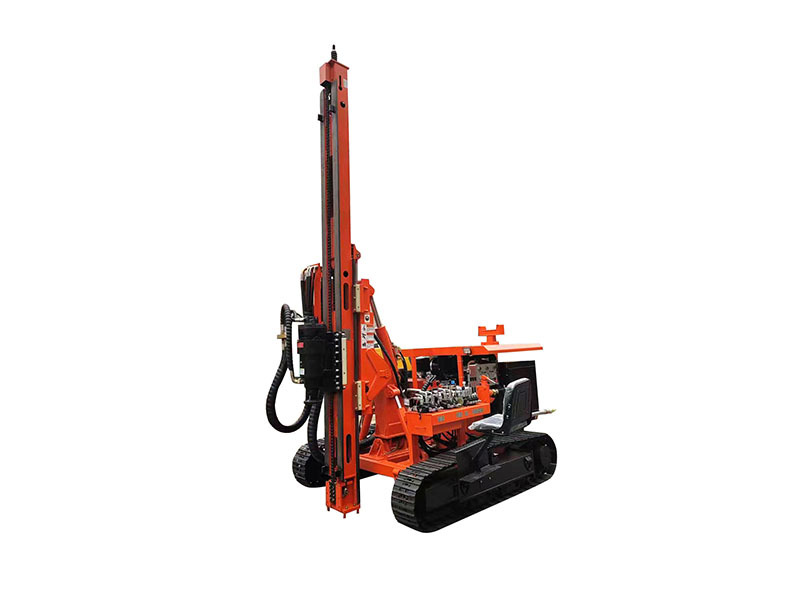

Photovoltaic drilling rig

Photovoltaic drilling rig is a kind of drilling machine designed for hillside solar power generation. It not only has the function of traditional drilling machine, but also has efficient horizontal drilling head. It has high precision drilling head, which can meet the drilling requirements of various hillside solar power generation, make the construction of solar photovoltaic power generation more fast and reliable, and better complete the task even in some difficult environments.

Classification:

Key words:

Photovoltaic drilling rig

Telephone:

+86-13589692679

Inquiry

Introduction

Rig model	DH-660F
Engine Model	Yuchai 4108
Drilling depth (DTH) (mm)	0-60MM
Air consumption (3m³/min)	10-26
Working wind pressure (3m³/min)	0.7-1.6 medium pressure, 1.6-2.46 high pressure
Diameter of drill pipe (mm)	76-89
Hardness of adapted strata (F)	6-20(F)
Drill hole diameter (spiral drill pipe) (mm)	Maximum 400
Drilling depth (spiral drill pipe) (m)	0-30
Diameter of spiral drill pipe (mm)	110-400
One propulsion stroke (mm)	3200MM
Pitch angle of carriage (°)	100 degrees
Swing angle of carriage (°)	A total of 40 degrees left and right
Rotation speed (r/min)	0-70
Main engine power (kw)	58
Climbing angle (°)	35
Overall dimensions (length * width * height)	470019502635
Weight (kg)	4750
Travel speed (Km/h)	0-2.58
